AUS011 Faucet Socket Supplier

Technical Product Specification

Place of Origin: Made in China

Material: ERA Premium LEAD FREE Unplasticized Polyvinyl chloride (PVC-U）

Packing Method: Carton

Color: Body: White

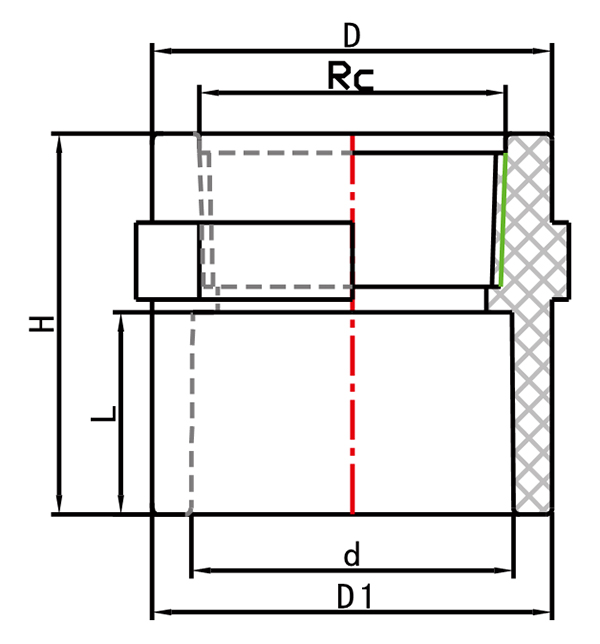

Dimensions: 15mm-100mm

Manufacturing Standards: ·AS/NZS 1477

Approvals and Certifications: Certified by WATERMARK

Meathod of Jointing: · Threaded joint

Working Temperature: 0-45 DEGREE

AUS011 Faucet Socket

Field of Apllication:

Water supply

Irrigation

Swimming pool

Industry

Water treatmeant

ERA Quality Control

Tests	Requirement/test standard	Initial type test	Self-monitoring	Third-party control
AS 4020 test	Acc. to AS/NZS 4020	Yes	No	At any new formulation
Hygiene	Vinyl Chloride Monomer Test	Yes	No	At any change in PVC
Surface appearance	When viewed without magnification, the internal and external surfaces of fittings shall be smooth, clean and free from scoring, cavities and other surface defects	Yes	1 x per cavity per hour	At any change in design or formulation
Dimension and tolerance	Socket length of fitting for solvent cement jointing shall comply with the table 5.1 of AS/NZS 1477, the maximum diametral strain ε≤3.5%，ε=（Dm max-Dr min）/Dr min *100. Socket Wall thickness shall comply with the clause 5.3.1 of AS/NZS 1477	Yes	1 x per cavity per hour	At any change in design or formulation
High temperature stress relief test	At a temperature of (150±4)℃ for 30+3,-0 min, the surface no damage.	Yes	1 x per cavity per 2 hour	At any change in design or formulation
Long-term tensile stress test for 1000 hrs	At 20℃，sustain a hoop stress of 23.6Mpa for 1000hrs P=б*2emin/dem-emin	Yes	No	At any new formulation
Short-term hydrostatic test	At 20°C, 1 hour, at 3.6 times the rate working pressure , no burst , no crack	Yes	One per cavity per production shift	At any new formulation
Tightening torque test（apply for threaded fittings）	The threaded fitting shall be capable of being tightened without damage when the torque specified in Table 3.4 of AS/NZS 1477	Yes	No	At change in design
Marking	ERAR, PVC, DN Value, PN Value, AS/NZS 1477 WMKA25603	Yes	One per cavity per production shift	At any new design or formulation

ERA Valve Advantages:

50 Years Quality Gaurantee

13 International Certification

Strict Quality Control

Good Raw Material And Spare Parts Ensure Exceellent Mechnical And Chemical Properties
