UDAL009 Reducing Ring Manufacturer

Technical Product Specification

Place of Origin: Made in China

Material: ERA Premium LEAD FREE UNPLASTICIZED Polyvinyl chloride (PVC-U）

Packing Method: Carton

Color: White, 4#Grey, 5#Grey, S1#Grey, Brownish yellow

Dimensions: 1-1/2”-6”

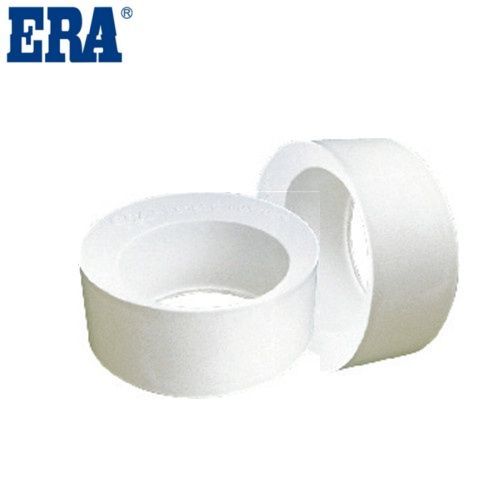

UDAL009 Reducing Ring

Manufacturing Standards: ASTM D2665

Approvals and Certifications:

Certified by NSF

Certified by UPC

Method of Jointing: Solvent cement joint

Working Temperature: 0-45 Degree

UDAL009 Reducing Ring

ERA Quality Control

Tests	Requirement/test standard	Initial type test	Self-monitoring	Third-party control
Tup Impact Test Result	At 23°C , using Tup A and Hold B, with a 5kg Tup, DN＞2”，Min. Impact resistance is 20J;DN≤2”, Min. Impact resistance is 10J, test 10pcs, 9 or 10 specimens pass, accept the lot.	Yes	1 x per week	1 x per year
Deflection Load Test (Flattening Test)	At 23℃，12.5±0.05 mm/min test speed, 11kN/m required minimum load ,No cracks	Yes	1 x per year	1 x per year
Dimension and tolerance	See the Table 1	Yes	1 x 24h	1 x per year
Marking	ERA, PVC I, SIZE, D2466, NSF-PW	Yes	1 x 24h	1 x per year

ERA ADVANTAGES:

50 YEARS QUALITY GUARANTEE

13 INTERNATIONAL CERTIFICATION

STRICT QUALITY CONTROL

GOOD RAW MATERIAL ENSURES EXCEELLENT MECHNICAL AND CHEMICAL PROPERTIES

FAQ

Why choose us?

1. Genuine produces with excellent quality and competitive price.
2. Cooperating with the customers all over the world and knowing the markets very well.
3. ERA is a listed company. Everything can be rest assured working with us.
4. After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

How about the samples?

We could send you the samples, most samples are free to send to most places in China. If sent to other countries, transport fee shoule be paid by you.

What is the location of your company?

Our company is located in the Taizhou Zhejiang Province, China. If you would like to have a visit, you are much welcome.

How should I contact you?

You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

What is your payment terms?

We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

What is the shipping port?

We ship the goods via Ningbo or Shanghai port.

What is your delievery time?

The time of delievery is around 30-45days.

What is your MOQ?

Our MOQ is usually 5 CTNS.
