UDRN010 Door Tee With Rubber Manufacturer

Technical Product Specification

Place of Origin: Made in China

Material:

ERA Premium LEAD FREE UNPLASTICIZED Polyvinyl chloride (PVC-U）

Rubber

Packing Method: Carton

Color: White, 4#Grey, 5#Grey, S1#Grey, Brownish yellow

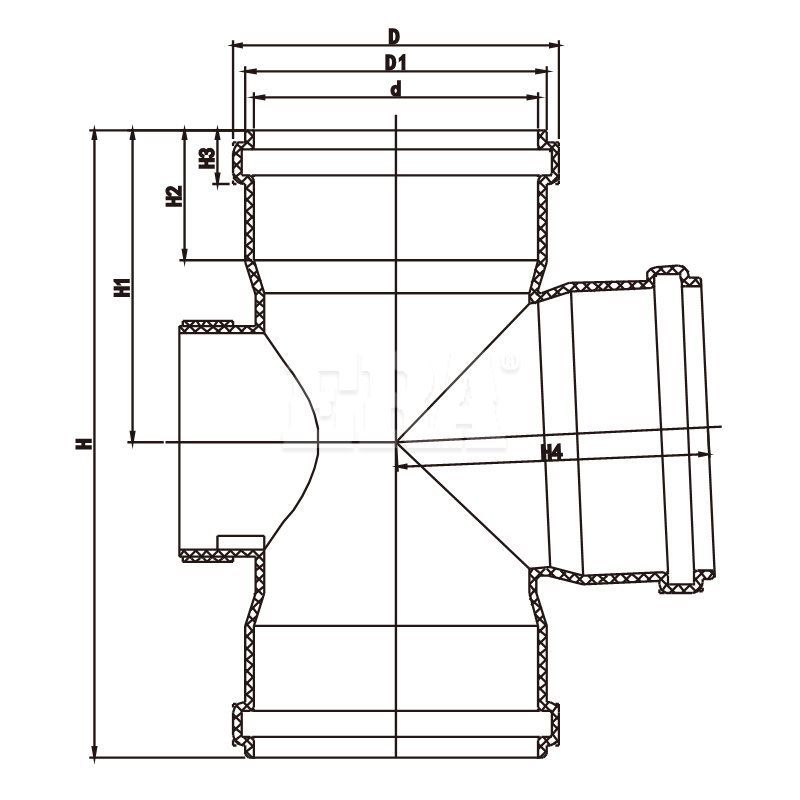

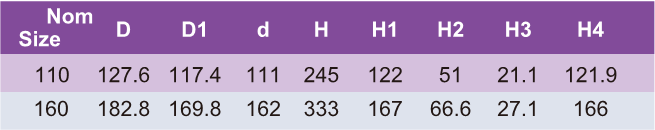

Dimensions: 110mm-160mm

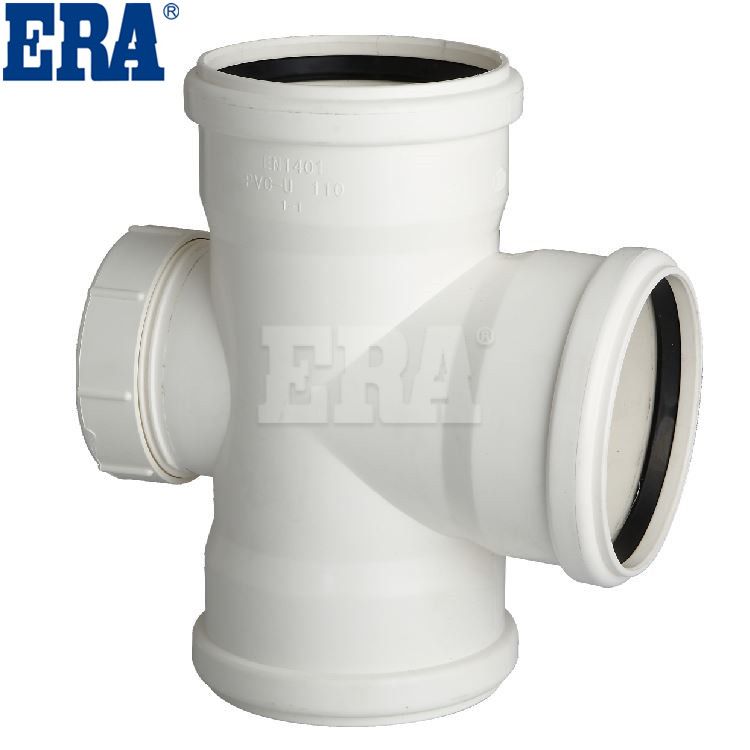

UDRN010 Door Tee With Rubber

Manufacturing Standards: BS EN1401

Approvals and Certifications: Certified by CE

Method of Jointing: Rubber Ring Connection

Working Temperature: 0-45 Degree

UDRN010 Door Tee With Rubber

Field of Apllication:

Indoor drainage and sewage fittings

Outdoor rainwater pipes & fittings

Agricultural irrigation

ERA Quality Control

Tests	Requirement/test standard	Initial type test	Self-monitoring	Third-party control
Appearance and surface	When viewed without magnification the internal and external surfaces of the fittings were smooth, clean and free from grooving, blistering, impurities, pores and other surface irregularities likely to prevent conformity to the standard.	Yes	1 x per cavity per hour	1 x per year
Color	White, Grey, Golden brown	Yes	1 x per cavity per hour	1 x per year
Dimension and tolerance	According to Table 7 & Table 8	Yes	1x per 4 hours	1 x per year
Softening temperature	According to 2507-1, VST≥ 7°C	Yes	One per production shift	1 x per year
Effect of Heating	At 150°C, heating time: 30 min, no damage, According to Table 22	Yes	One per production shift	1 x per year
Stiffness	≥4 kN/M2	Yes	According to EN ISO 13967	1 x per year
Drop	Test temperature: 0℃ Height of drop: DN=100mm,10000mm DN=160mm,500mmDN=200mm,500mmImpact spot: milddle of socket No damage	Yes	According to EN ISO 13263	1 x per year
Marking	ERA EN 1401 SIZE PVC-U UD mfg date,workshop code (mfg date,workshop code can be printed on cartons)	Yes	One per production shift	1 x per year

ERA ADVANTAGES:

50 YEARS QUALITY GUARANTEE

13 INTERNATIONAL CERTIFICATION

STRICT QUALITY CONTROL

GOOD RAW MATERIAL ENSURES EXCEELLENT MECHNICAL AND CHEMICAL PROPERTIES

FAQ

Why choose us?

1. Genuine produces with excellent quality and competitive price.
2. Cooperating with the customers all over the world and knowing the markets very well.
3. ERA is a listed company. Everything can be rest assured working with us.
4. After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

How about the samples?

We could send you the samples, most samples are free to send to most places in China. If sent to other countries, transport fee shoule be paid by you.

What is the location of your company?

Our company is located in the Taizhou Zhejiang Province, China. If you would like to have a visit, you are much welcome.

How should I contact you?

You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

What is your payment terms?

We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

What is the shipping port?

We ship the goods via Ningbo or Shanghai port.

What is your delievery time?

The time of delievery is around 30-45days.

What is your MOQ?

Our MOQ is usually 5 CTNS.
