PLACE OF ORIGIN: MADE IN CHINA
MATERIAL:
Body: ERA Premium LEAD FREE UNPLASTICIZED chlorinated Polyvinyl chloride (CPVC）
COLOR: Ivory , light grey

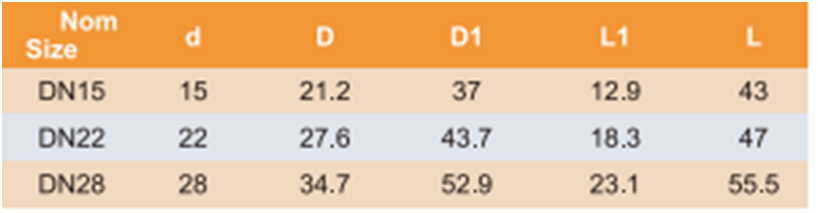

Dimensions(mm) DN15-28
Manufacturing Standards:
ANSI (ASTM D2846 / ASTM F439)
Brazil ( NBR 15884)
CHINA(GBT18998/DIN 8079
Approvals and certifications:
Certified by NSF 14 & 61
Field of Apllication:
Water supply
Irrigation
Swimming pool
Industry
Water treatmeant
Meathod of Jointing :Solvent cement joint with pipes
Threaded joint
WORKING PRESSURE: PN10 PN16
WORKING TEMPERATURE: 0-95 DEGREE
ERA QUALITY CONTROL
NSF Certified CPVC Pipe Testing Standard - CPVC ASTM D2846 |
Test item | Test standard: ASTM D2846 | testing | self testing | third-party |
Chemical raw material analysis | Annual testing and analysis of CPVC raw material components | Yes | No | Once a year |
Hygiene testing | Residual vinyl chloride test | Yes | No | Once a year |
4-hour hydrostatic test | 82.2 ° C hot water, 4 hours, 2.78 MPa, no rupture | Yes | Once a year | Once a year |
6-minute hydrostatic test | 82.2 ° C hot water, 6 minutes, 3.6MPa, no rupture | Yes | Once a year | Once a year |
Thermal cycling test | When subjected to 1000 thermal cycles at temperatures between 16 ℃ and 82 ℃, the fittings must not rupture or leak | Yes | No | Once a year |
Identification | ERA CPVC ASTM D2846 NSF-PW | Yes | N/A | Once a year |
Dimensions and tolerances | Refer to ASTM D2846 standard | Yes | Once a year | Once a year |
|
|
|
|
|
ERA ADVANTAGES:
50 YEARS QUALITY GAURANTEE
13 INTERNATIONAL CERTIFICATION
STRICT QUALITY CONTROL
GOOD RAW MATERIAL AND SPARE PARTS ENSURE EXCEELLENT MECHNICAL AND CHEMICAL PROPERTIES
PACKAGE: POLYBAG WTIH MASTERCARTON
