PRII003 Socket Manufacturer

Technical Product Specification

Place of Origin: Made in China

Material: ERA Premium Polypropylene-Random (PPR)

Packing Method: Carton

Color: White, #6 Green, Grey, Blue

Dimensions: 20mm-63mm

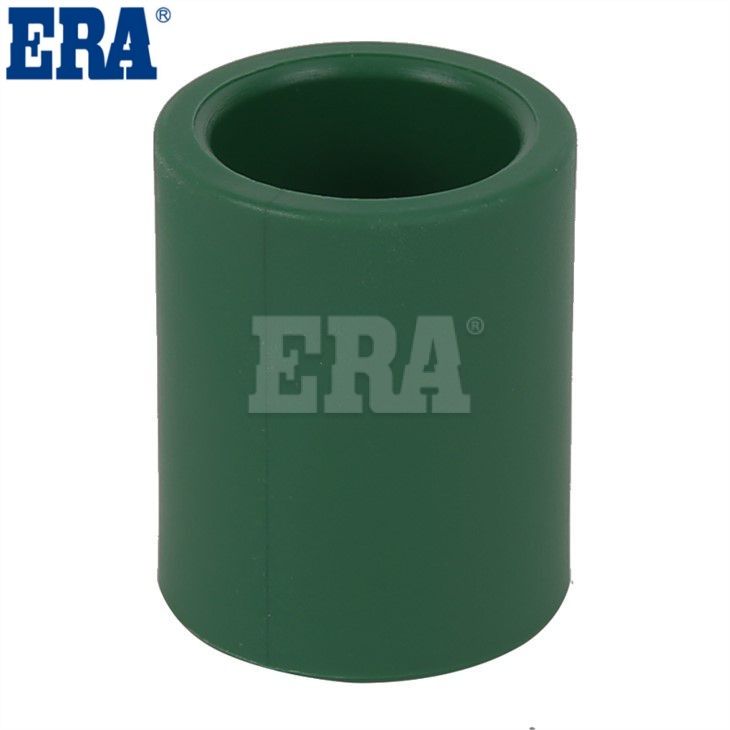

PRII003 Socket

Manufacturing Standards: DIN 8077/8078

Approvals and Certifications:

Certified by CE

Certified by DVGW

Certified by WRAS

Certified by PCT

Method of Jointing: Solvent Cement Joint

Working Pressure: PN16

Working Temperature: -20~95℃

PRII003 Socket

Field of Apllication:

Widely used in construction, civil building & Hot water system, agricultural irrigation system, swimming pool, water treatment equipment, home decoration, industrial piping lines, etc

ERA Quality Control

Tests	Requirement/test standard: W544	Initial type test	Self-monitoring	Third-party control
Hygienic requirement	Material has to fulfil work sheet W270	Yes	Documentation	check of doc.
	Product has to fulfil KTW-recommendations	Yes	1 x per year	check of doc.
Marking	Min.: DVGW and reg. no., PP-R, Ø x wall thickness, production date, machine-number, 10 bar / 70 °C(67°C) / 50 Jahre (years)	Yes	Continiously	2 x per year
Melt mass-flow rate (MFR), granulate	EN ISO 1133 / MFR 230/2.16	Yes	each mat. Batch	check of doc.
Dry loss	Difference < 0.1 weight-% by testing with oven	No	each mat. Batch	check of doc.
Surface appearance	Without visible failures / DIN 8078	Yes	Continuously	2 x per year
Dimension and tolerance	Acc. to the tables of DIN 8077 /ISO 15874-2	Yes	Continuously	2 x per year
Longitudunal reversion (Amendment after heat ageing)	DIN 8078 oven 135 °C, placed for 2 hours, return to room temperature, pipe length shrinkage ≤ 2%	Yes	3 x per week	2 x per year
Melt mass-flow rate (MFR)	Difference to granulate max. 20 % / EN ISO 1133	Yes	1 x per week	2 x per year
IMPact resistance (Charpy)	≤ 2 % / DIN 8078	Yes	1 x per day	2 x per year
Long-term hydrostatic pressure test	At 95°C, 165 hrs, 1.64 MPa, no burst, no leakage.	Yes	1 x per week	2 x per year
	At 95°C, 1000 hrs, 1.51 MPa, no burst,no leakage.	Yes	No	2 x per year
	110°C, 8760 hrs, 0.82 MPa ，no burst,no leakage.	Yes	No	No
Homogeneity	≤ 0.02 mm² / evaluation on microtome with 10 μm, scale of enlargement 75-100, determined surface min. 100 mm²	Yes	1 x per week	2 x per year

ERA ADVANTAGES:

50 YEARS QUALITY GUARANTEE

13 INTERNATIONAL CERTIFICATION

STRICT QUALITY CONTROL

GOOD RAW MATERIAL ENSURES EXCEELLENT MECHNICAL AND CHEMICAL PROPERTIES

FAQ

Why choose us?

1. Genuine produces with excellent quality and competitive price.
2. Cooperating with the customers all over the world and knowing the markets very well.
3. ERA is a listed company. Everything can be rest assured working with us.
4. After- Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.

How about the samples?

We could send you the samples, most samples are free to send to most places in China. If sent to other countries, transport fee shoule be paid by you.

What is the location of your company?

Our company is located in the Taizhou Zhejiang Province, China. If you would like to have a visit, you are much welcome.

How should I contact you?

You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.

What is your payment terms?

We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.

What is the shipping port?

We ship the goods via Ningbo or Shanghai port.

What is your delievery time?

The time of delievery is around 30-45days.

What is your MOQ?

Our MOQ is usually 5 CTNS.
