How To Choose The Right Ball Valve Size?

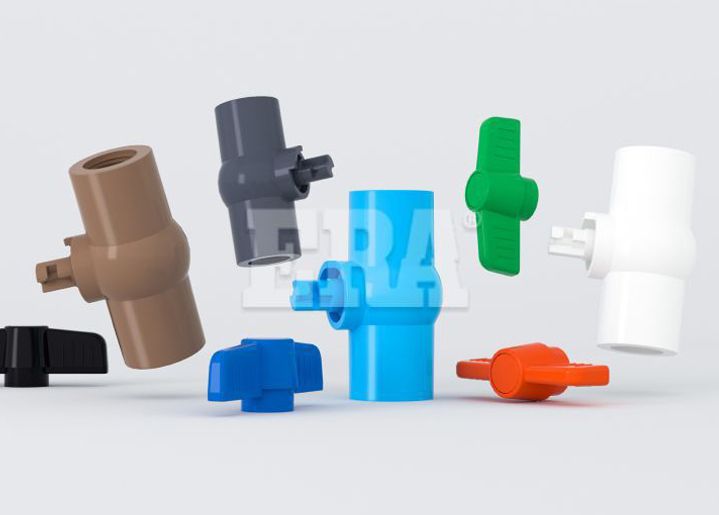

Choosing the right ball valve size is crucial for ensuring optimal performance and efficiency in your piping or fluid control system. Ball valves are commonly used in a variety of applications, from residential plumbing to industrial systems, due to their reliability and ease of use. However, selecting the wrong valve size can lead to flow restrictions, pressure drops, and potential system failures. In this guide, we will walk you through the key factors to consider when choosing the correct size for your ball valve.

1. Understand the Purpose of the Ball Valve

Before selecting a ball valve, it's important to understand its intended application. Ball valves are typically used to control the flow of liquids or gases in a pipe. Depending on the specific requirements of your system, the valve size may vary. The two most common uses of ball valves are:

• On/Off Control: In systems that need to regulate flow between fully open or closed positions, such as in water pipelines or gas lines.

• Flow Regulation: In systems requiring precise control of flow rates, often found in HVAC, chemical, and industrial processes.

Knowing how the valve will be used helps determine the size and specifications needed for the system.

2. Consider Pipe Size and Diameter

The most straightforward way to choose the right ball valve size is by considering the size of the pipe where the valve will be installed. Ball valves are generally selected based on the nominal pipe size (NPS) or the diameter of the pipe in which the valve will be placed. A good rule of thumb is that the valve size should match the inner diameter of the pipe.

• Matching Pipe Size: For most systems, choose a valve with a nominal diameter equal to that of the pipe. For example, if your system has a 2-inch pipe, you would choose a 2-inch ball valve.

• Upgrading or Modifying the Pipe: If the system requires an upgrade or modification, you may need to adjust the valve size accordingly, ensuring it fits with the new pipe diameter.

When selecting a valve, check the specifications to make sure the valve's end connections (e.g., threaded, flanged, or welded) match the pipe type and diameter.

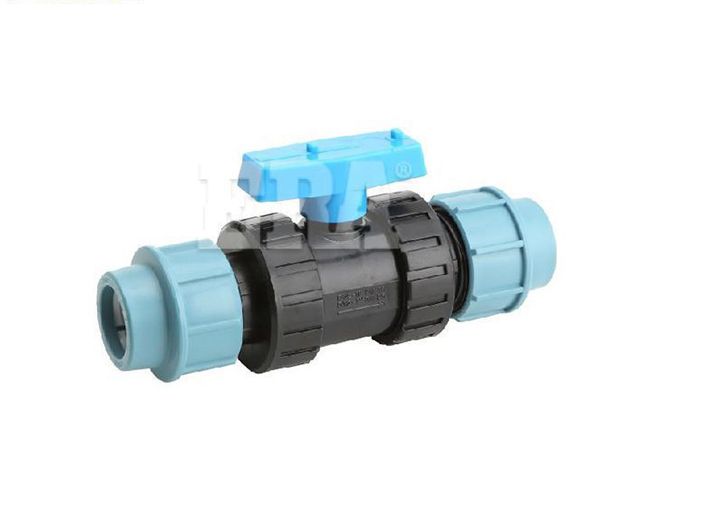

PVC Three PCS Ball Valve

3. Assess Flow Rate Requirements

The flow rate, often measured in gallons per minute (GPM) or liters per minute (LPM), is a key factor in choosing the right ball valve size. A valve that is too small will restrict flow, creating unnecessary pressure and increasing the risk of system damage. On the other hand, a valve that is too large may cause excessive flow, leading to inefficiency and instability in your system.

To determine the ideal ball valve size for your flow rate requirements, you'll need to know the following:

• System Flow Rate: Calculate the required flow rate for the application based on the fluid type and system needs. You can refer to manufacturer data or use flow calculators to determine the necessary flow for your valve.

• Pressure Drop: Ensure that the ball valve can handle the pressure at which your system operates. A valve that’s too small could result in an unacceptable pressure drop, while one that’s too large may have unnecessary capacity and reduced flow control.

Choose a valve with the correct flow capacity to ensure that your system operates efficiently without compromising on pressure or flow rates.

4. Consider the Valve's Cv Value

The Cv value (flow coefficient) of a valve is a critical factor in determining the valve’s ability to handle flow. The Cv value measures the flow capacity of a valve, indicating the number of gallons per minute that can pass through the valve with a 1 psi pressure drop at a given temperature.

When selecting the right ball valve size, compare the Cv values of different valve models to ensure you choose one that aligns with your flow rate and pressure requirements. A higher Cv value means the valve can handle a larger flow, while a lower Cv value is suitable for systems with lower flow rates.

5. Consider the Fluid Type and Temperature

The type of fluid being controlled, as well as its temperature, plays a significant role in determining the correct ball valve size. Different fluids, such as water, gas, oil, or chemicals, can have varying flow properties and require different valve sizes. Additionally, temperature can affect the viscosity of the fluid and, consequently, the flow rate.

For example, a valve handling high-viscosity fluids (e.g., oils or certain chemicals) may need to be larger to accommodate the slower flow, while one handling low-viscosity fluids (e.g., water) might need to be smaller. Additionally, the material of the valve must be compatible with the fluid's temperature and chemical properties to prevent degradation over time.

6. Take into Account the Installation and Space Constraints

While it's important to choose a ball valve size that meets the technical requirements, practical considerations also play a role in the selection process. Space constraints and installation accessibility are factors that should be considered when deciding on the size of the ball valve. In tight spaces, a smaller valve or a valve with a compact design might be necessary to facilitate installation.

Additionally, consider the installation method (e.g., flanged, threaded, or welded) and ensure that the valve size is compatible with the existing pipework and fittings. If you're working in a confined or difficult-to-access area, a valve with a simpler design or one that can be installed in place without extensive modifications might be preferable.

Conclusion

Choosing the right ball valve size is essential for the efficiency, reliability, and longevity of your fluid control system. By understanding the pipe size, flow rate requirements, Cv value, fluid properties, and installation constraints, you can select a valve that optimally suits your needs. Whether you're working in a residential, commercial, or industrial environment, carefully considering these factors will ensure that you choose the right size for your application, avoiding issues like flow restriction, pressure loss, and system inefficiency.
